GL45 Stainless Steel 2-Port Connector Cap
The GL45 stainless steel 2-port connector cap is designed for closed laboratory fluid systems that require two independent tubing connections. It combines a red PBT GL45 screw cap, a 316L stainless steel connector insert and a silicone gasket to support reliable gas and liquid sealing during aseptic liquid transfer.
Specifications and Construction

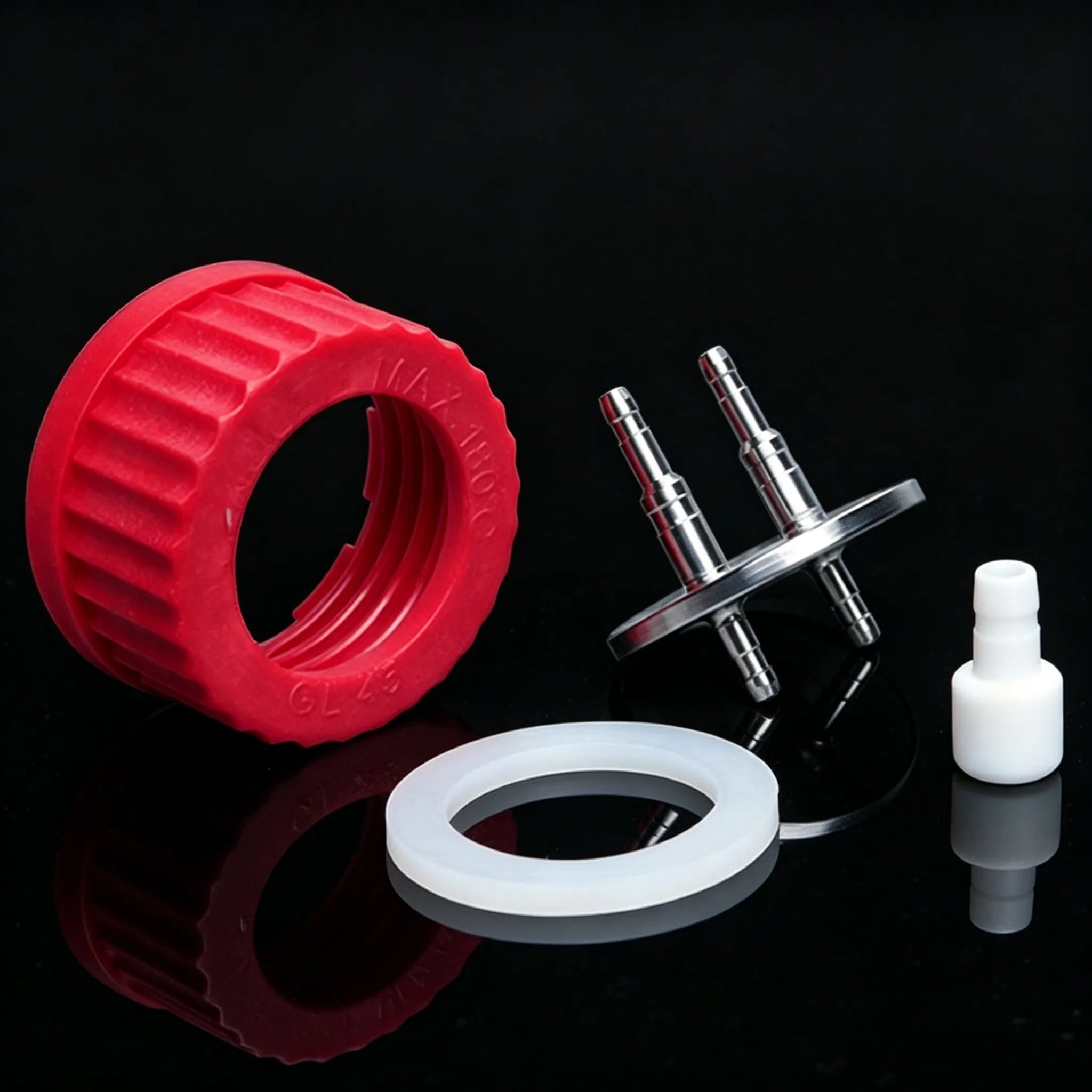

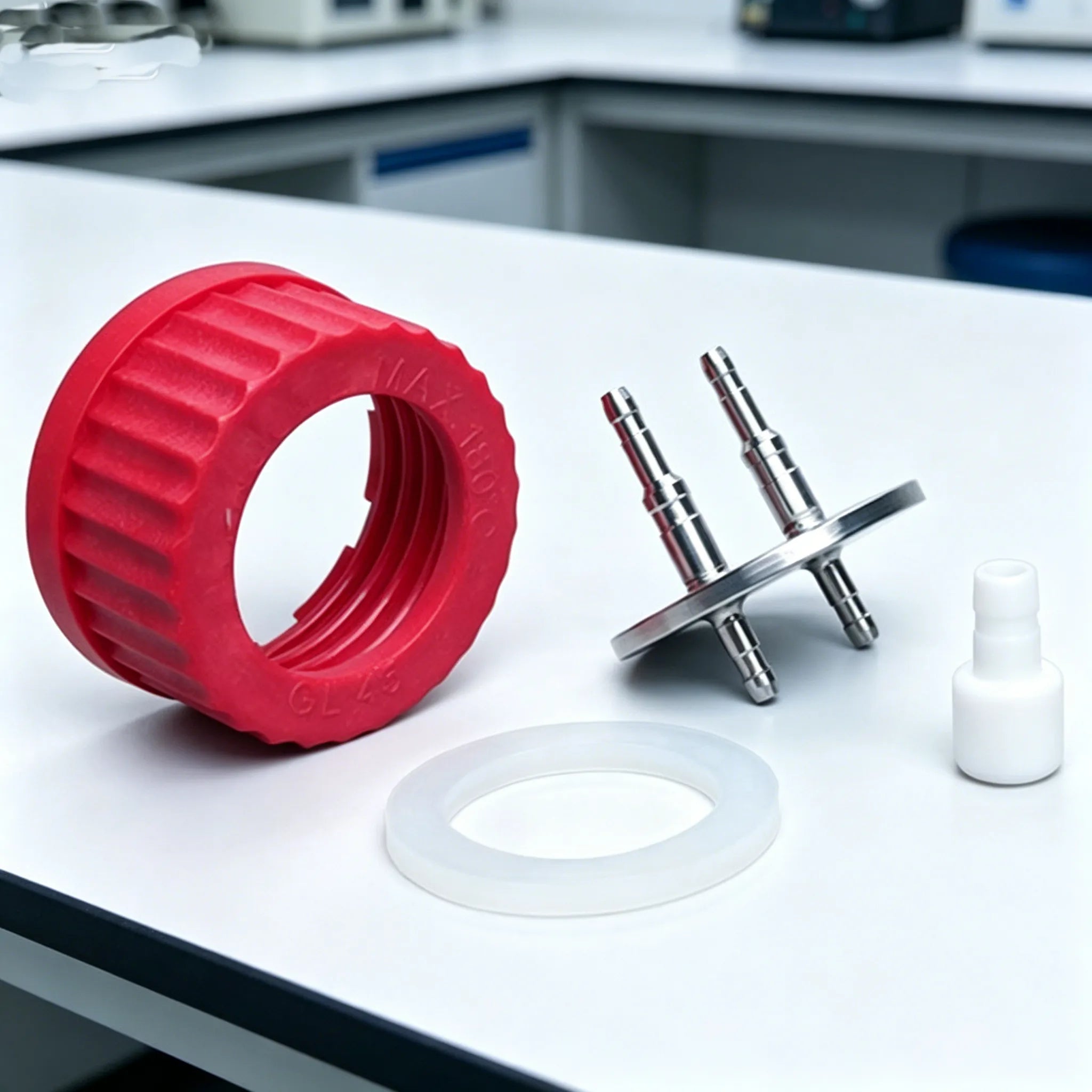

- Compatible bottle neck: GL45 laboratory reagent bottle thread.
- Screw cap: Red PBT plastic.

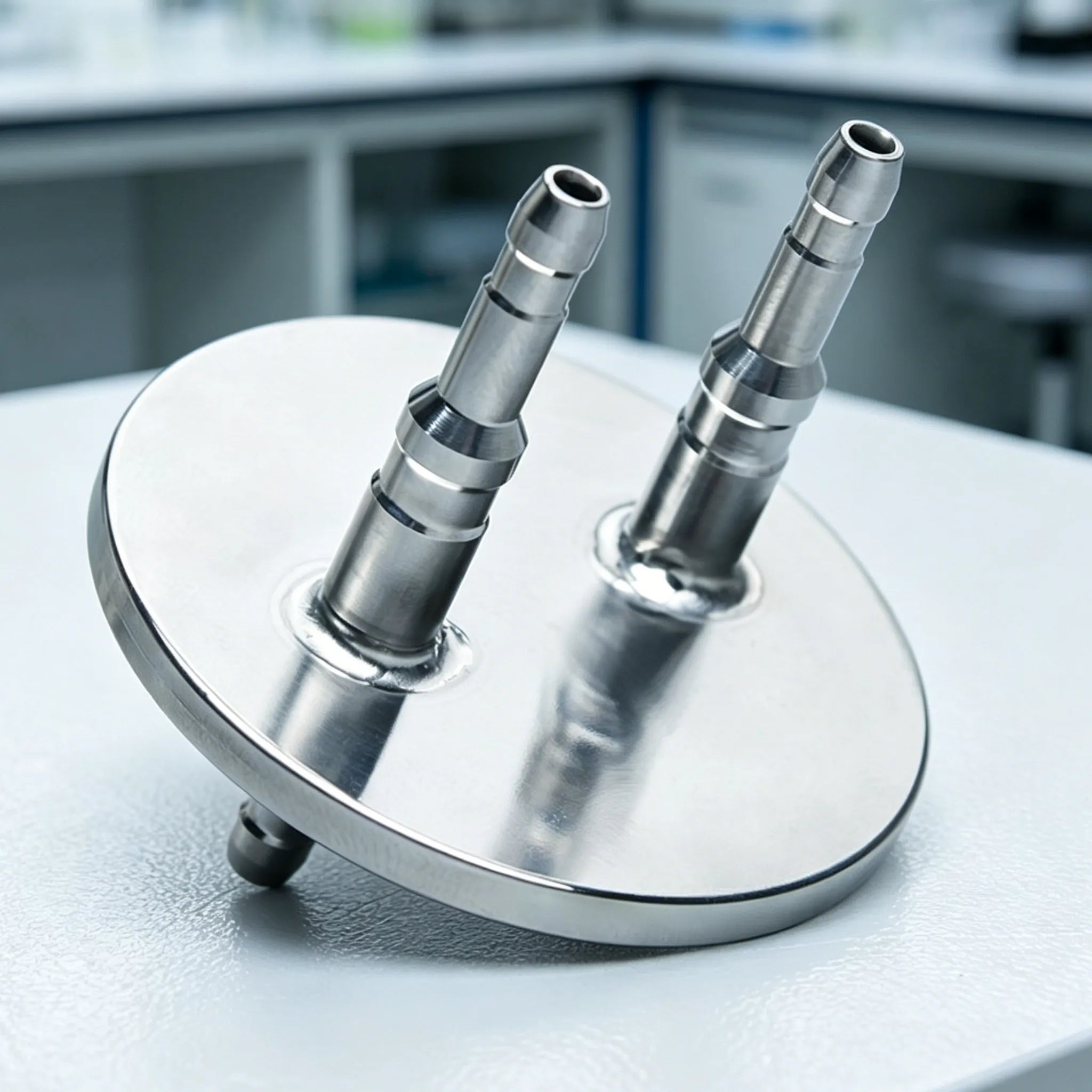

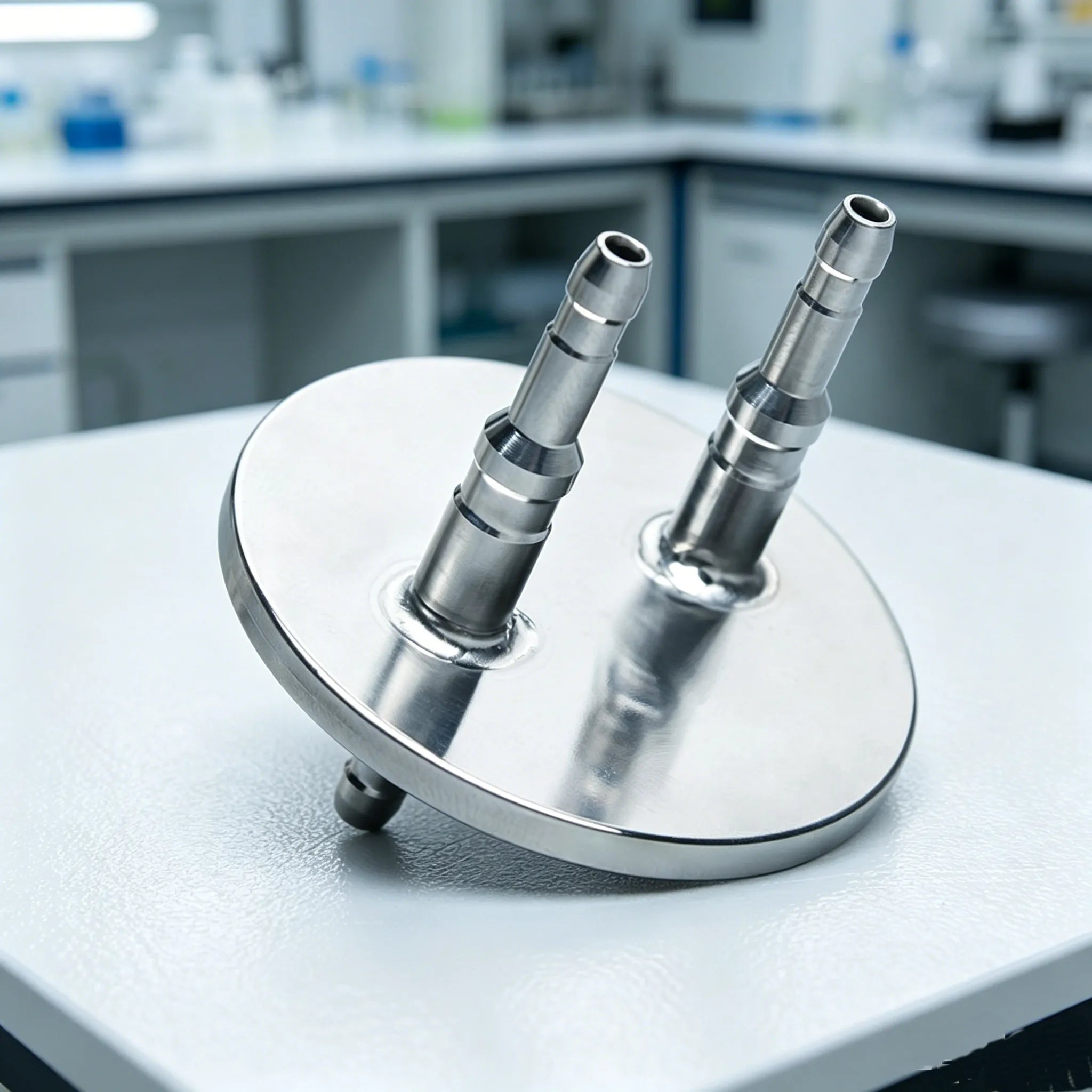

- Connector insert: 316L stainless steel 2-port design.
- Seal: Silicone gasket.
- Autoclaving temperature: 121–134°C.
- Pack size: 6 sets/box.
Available Port Configurations
| SKU | Port Configuration | Pack Size |
|---|---|---|
| CBC0405S2P | 2 × 4–5.5 mm | 6 sets/box |
| CBC0607S2 | 2 × 6–7.5 mm | 6 sets/box |
| CBC0809S2 | 2 × 8–9.5 mm | 6 sets/box |
| CBC4567S2 | 4–5.5 mm + 6–7.5 mm | 6 sets/box |
| CBC4589S2 | 4–5.5 mm + 8–9.5 mm | 6 sets/box |
| CBC6712S2 | 6–7.5 mm + 11–12 mm | 6 sets/box |
| CBC8912S2 | 8–9.5 mm + 11–12 mm | 6 sets/box |
Silicone Tubing Compatibility
| Connector Outer Diameter | Compatible Silicone Tubing |
|---|---|

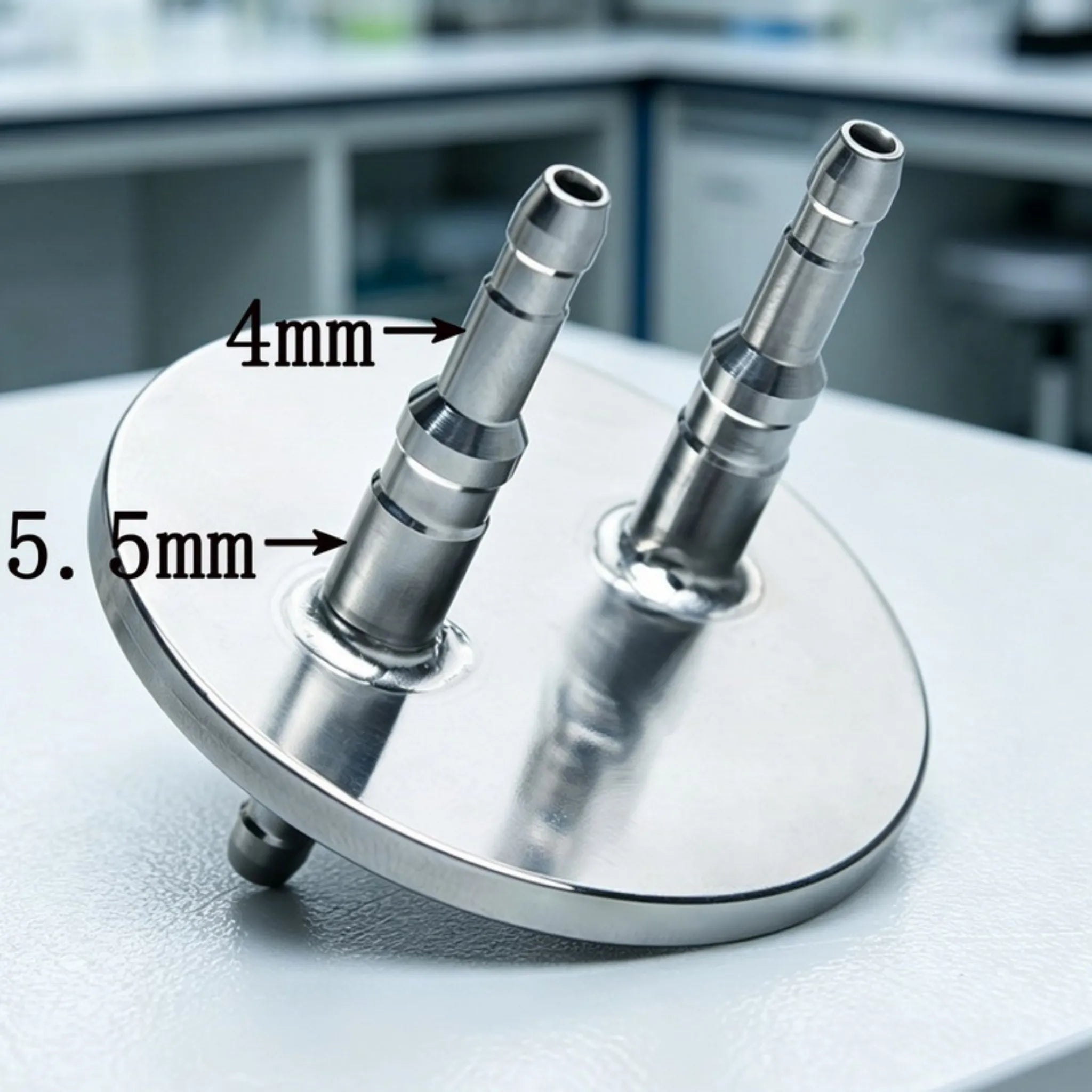

| 4–5.5 mm | 1/8 inch (16#) |
| 6–7.5 mm | 3/16 inch (25#) |
| 8–9.5 mm | 1/4 inch (17#) |
Selection note: Configurations containing an 11–12 mm port are listed by connector outer diameter. Confirm the tubing inner diameter required for your system before ordering.
Key Features
- Two-port fluid connection: Supports separate inlet and outlet lines or independent gas and liquid paths.
- 316L stainless steel ports: Corrosion-resistant construction for biopharmaceutical, chemical and general laboratory applications.
- Autoclavable PBT cap: Suitable for autoclaving at 121–134°C.
- Silicone gasket: Helps maintain reliable gas and fluid tightness in a closed bottle system.
- Multiple port configurations: Includes equal-size and mixed-size port combinations for different tubing setups.
Applications
- Aseptic transfer of reagents and culture media
- Mobile phase and solvent reservoir connections for laboratory instruments
- Fermenter feed or waste bottle connections
- Closed reaction systems using inert gas or negative pressure
