GL45 Stainless Steel 3-Port Connector Cap
The GL45 stainless steel 3-port connector cap provides three independent tubing connections for laboratory bottle systems. The multi-channel design can support functions such as gas inlet, liquid outlet and venting within a closed fluid path.
Specifications and Construction
- Compatible bottle neck: GL45 laboratory reagent bottle thread.
- Screw cap: Red PBT plastic.

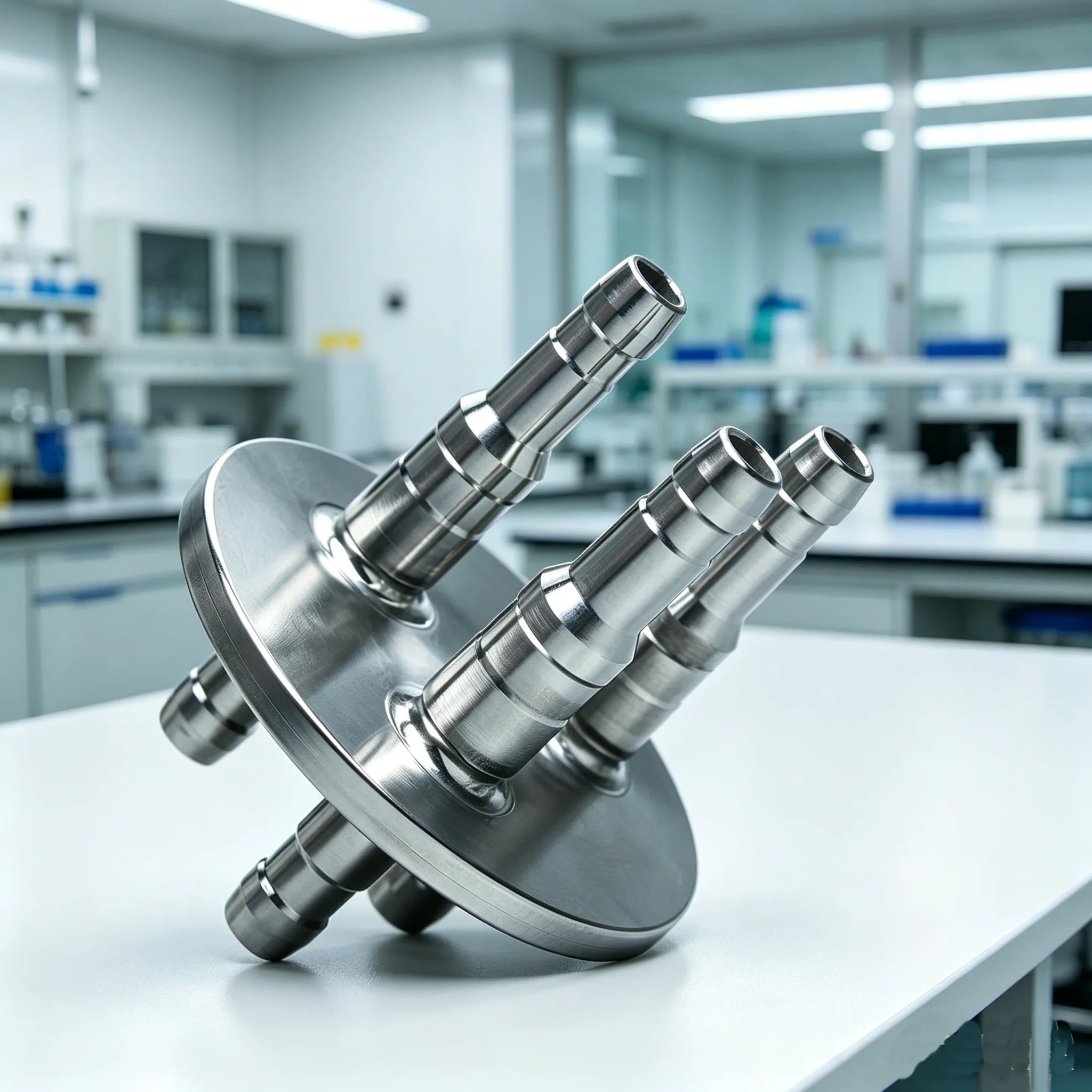

- Connector insert: 316L stainless steel 3-port design.
- Seal: Silicone gasket.
- Autoclaving temperature: 121–134°C.
- Pack size: 6 sets/box.
Available Port Configurations
| SKU | Port Configuration | Pack Size |
|---|---|---|
| CBC0405S3Q | 3 × 4–5.5 mm | 6 sets/box |
| CBC0607S3 | 3 × 6–7.5 mm | 6 sets/box |
| CBC0809S3 | 3 × 8–9.5 mm | 6 sets/box |
| CBC4589S3 | 4–5.5 mm + 8–9.5 mm + 8–9.5 mm | 6 sets/box |
| CBC6789S3 | 6–7.5 mm + 6–7.5 mm + 8–9.5 mm | 6 sets/box |

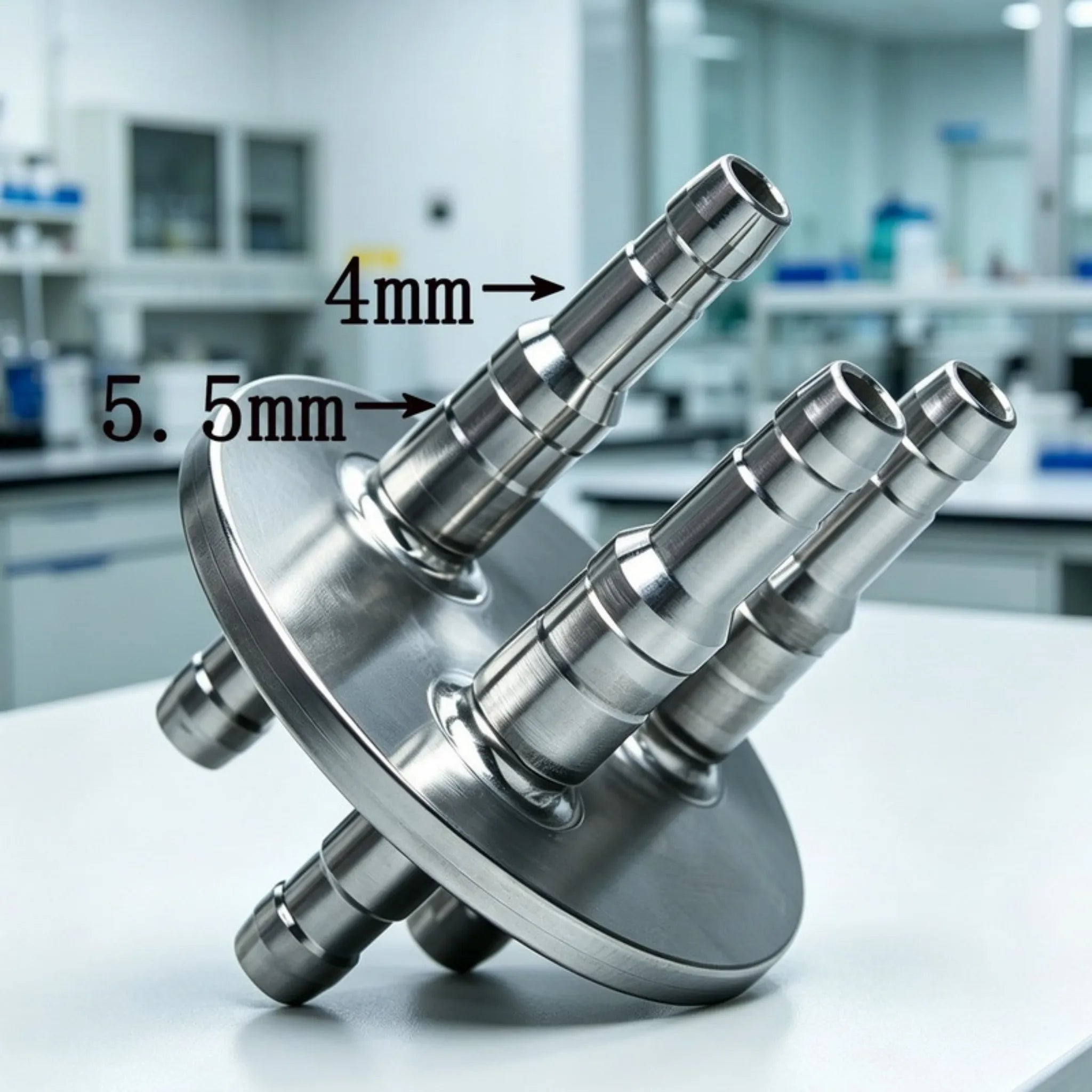

Silicone Tubing Compatibility
| Connector Outer Diameter | Compatible Silicone Tubing |
|---|---|
| 4–5.5 mm | 1/8 inch (16#) |
| 6–7.5 mm | 3/16 inch (25#) |
| 8–9.5 mm | 1/4 inch (17#) |
Key Features
- Three-port configuration: Supports simultaneous gas inlet, liquid transfer and venting functions.
- 316L stainless steel ports: Corrosion-resistant and autoclavable for demanding laboratory workflows.
- Autoclavable PBT cap: Suitable for autoclaving at 121–134°C.
- Silicone gasket: Helps maintain reliable sealing for gas and liquid handling.
- Mixed port sizes available: Select equal-size or mixed-size connections to match different tubing lines.
Applications
- Fermenter feeding, nutrient addition and discharge
- Aeration, gas inlet, liquid outlet and venting
- Aseptic transfer of reagents and culture media
- Laboratory instrument liquid supply
- Closed reaction systems under inert gas or negative pressure
