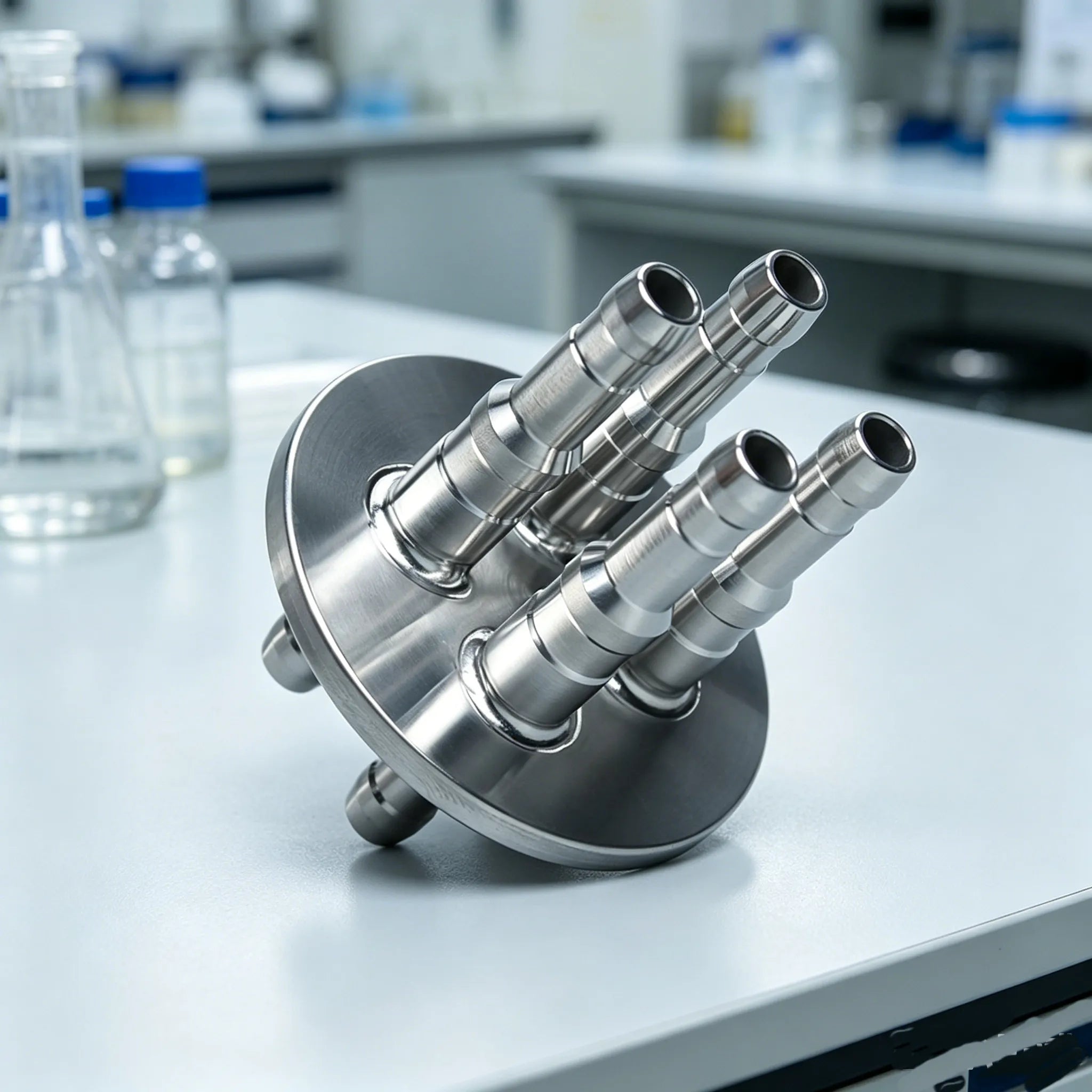

GL45 Stainless Steel 4-Port Connector Cap
The GL45 stainless steel 4-port connector cap is designed for multi-line fluid and gas handling through a single GL45 laboratory bottle opening. Four 316L stainless steel hose connections support buffer, media and process-fluid transfer in closed laboratory systems.
Specifications and Construction
- Compatible bottle neck: GL45 laboratory reagent bottle thread.
- Screw cap: Red PBT plastic.
- Connector insert: 316L stainless steel 4-port design.
- Seal: Silicone gasket.
- Autoclaving temperature: 121–134°C.
- Pack size: 6 sets/box.
Available Port Configurations
| SKU | Port Configuration | Pack Size |
|---|---|---|

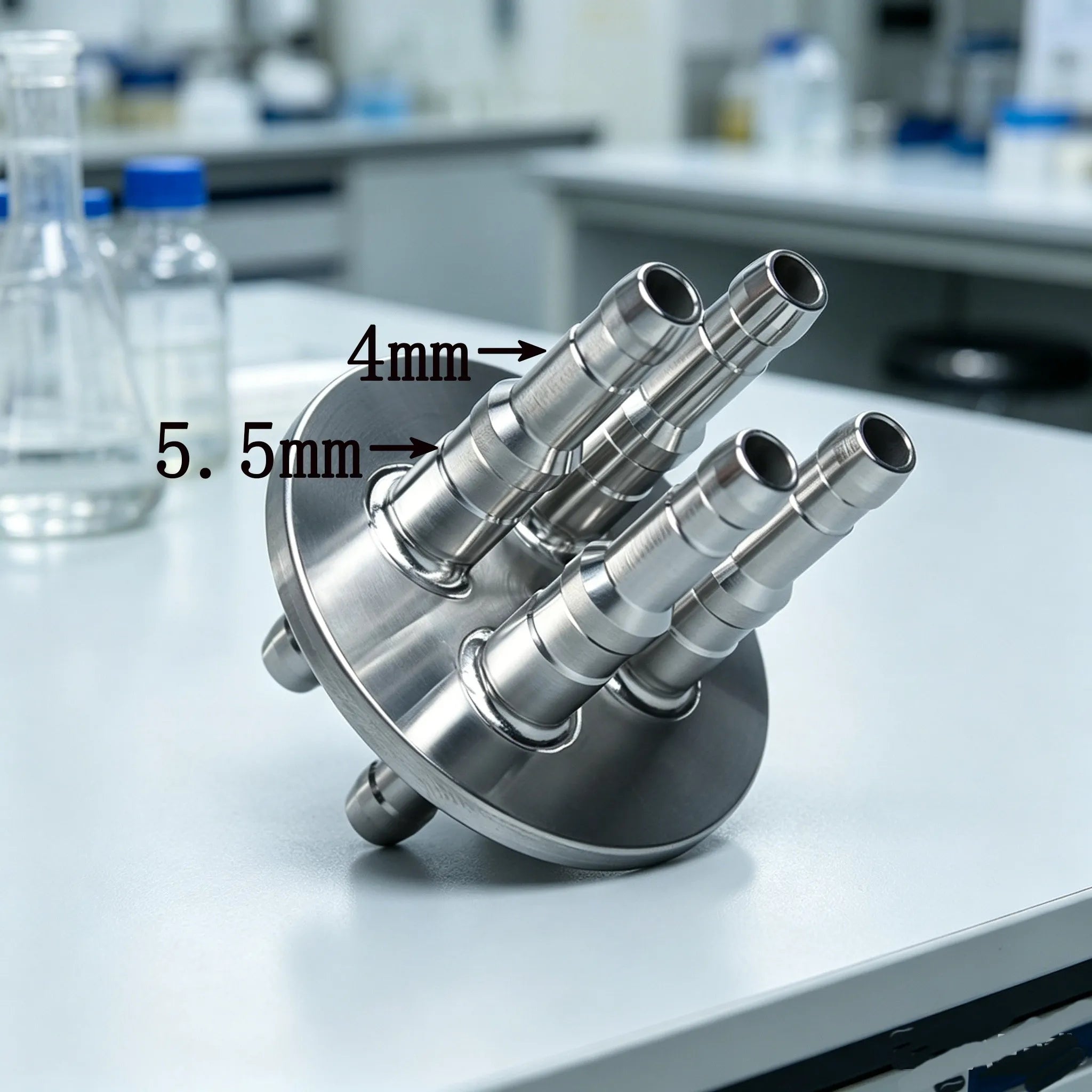

| CBC0405S4Q | 4 × 4–5.5 mm | 6 sets/box |
| CBC0607S4 | 4 × 6–7.5 mm | 6 sets/box |
| CBC0809S4 | 4 × 8–9.5 mm | 6 sets/box |
Silicone Tubing Compatibility
| Connector Outer Diameter | Compatible Silicone Tubing |
|---|---|
| 4–5.5 mm | 1/8 inch (16#) |
| 6–7.5 mm | 3/16 inch (25#) |
| 8–9.5 mm | 1/4 inch (17#) |
Key Features
- Four-port connection: Supports multiple liquid and gas lines through one GL45 bottle cap.
- 316L stainless steel ports: Corrosion-resistant and autoclavable for biopharmaceutical and chemical applications.
- Autoclavable PBT cap: Suitable for autoclaving at 121–134°C.
- Silicone gasket: Helps provide dependable gas and fluid sealing.
- Multi-channel operation: Suitable for feeding, aeration, liquid withdrawal and waste collection.
Applications
- Multi-line buffer and media transfer
- Fermenter feeding, aeration and waste collection
- Aseptic transfer of reagents and culture media
- Laboratory instrument liquid supply
- Closed reaction systems using inert gas or negative pressure
